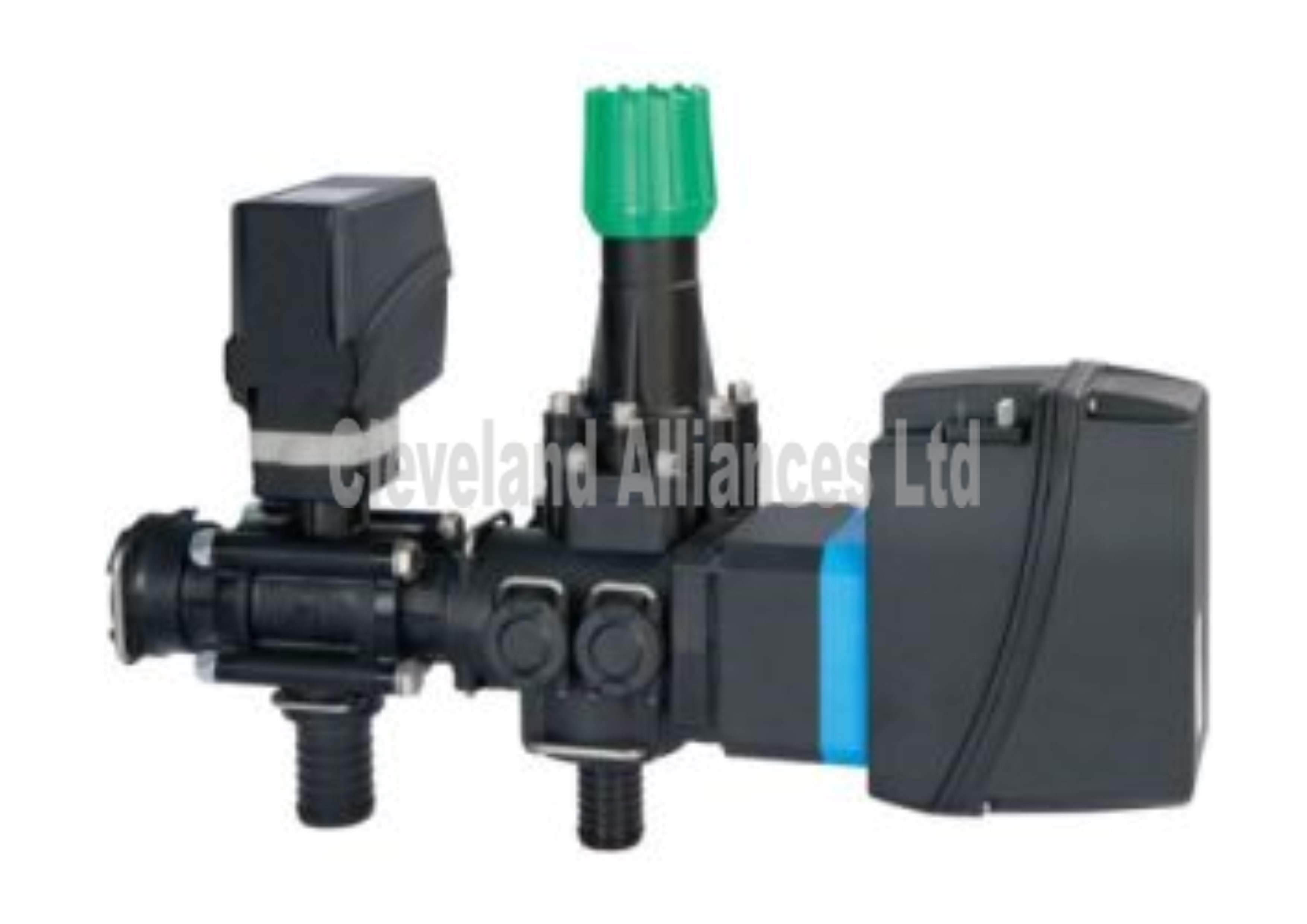

Main control valve with electric proportional valve

Main control valve with electric proportional valve

List Price £786.10

SKU: N/A Category:

Description

GENERAL FEATURES

Fibreglass-reinforced Nylon body
Internal parts in Delrin® and AISI 303 stainless steel
Gaskets made of Viton®
Internal resettable fuse (disconnecting power for 20 seconds)
Low power consumption
Consisting of series 864 main valve and series 873 proportional valve

TECHNICAL FEATURES

Hose fitting included: IN (25mm); ByPass 35mm;
Hose fitings diameter available to be ordered depending on the desired flow rate (see Chart):
IN = 25, 30, 35 and 38mm;
ByPass: 35mm and 40mm;

Code 86452T50
Fork Coupling (T) T5
MAX Pressure 20 bar
MAX Pressure 290 PSI
Absorption @ 12V 3.5A
Power supply voltage 12 Vdc

Additional information

Weight N/A
Part No:

Inlet hose tail size

25mm, 30mm, 35mm, 38mm

Bypass hose tail size

25mm, 30mm

Return hose tail size

35mm, 40mm
