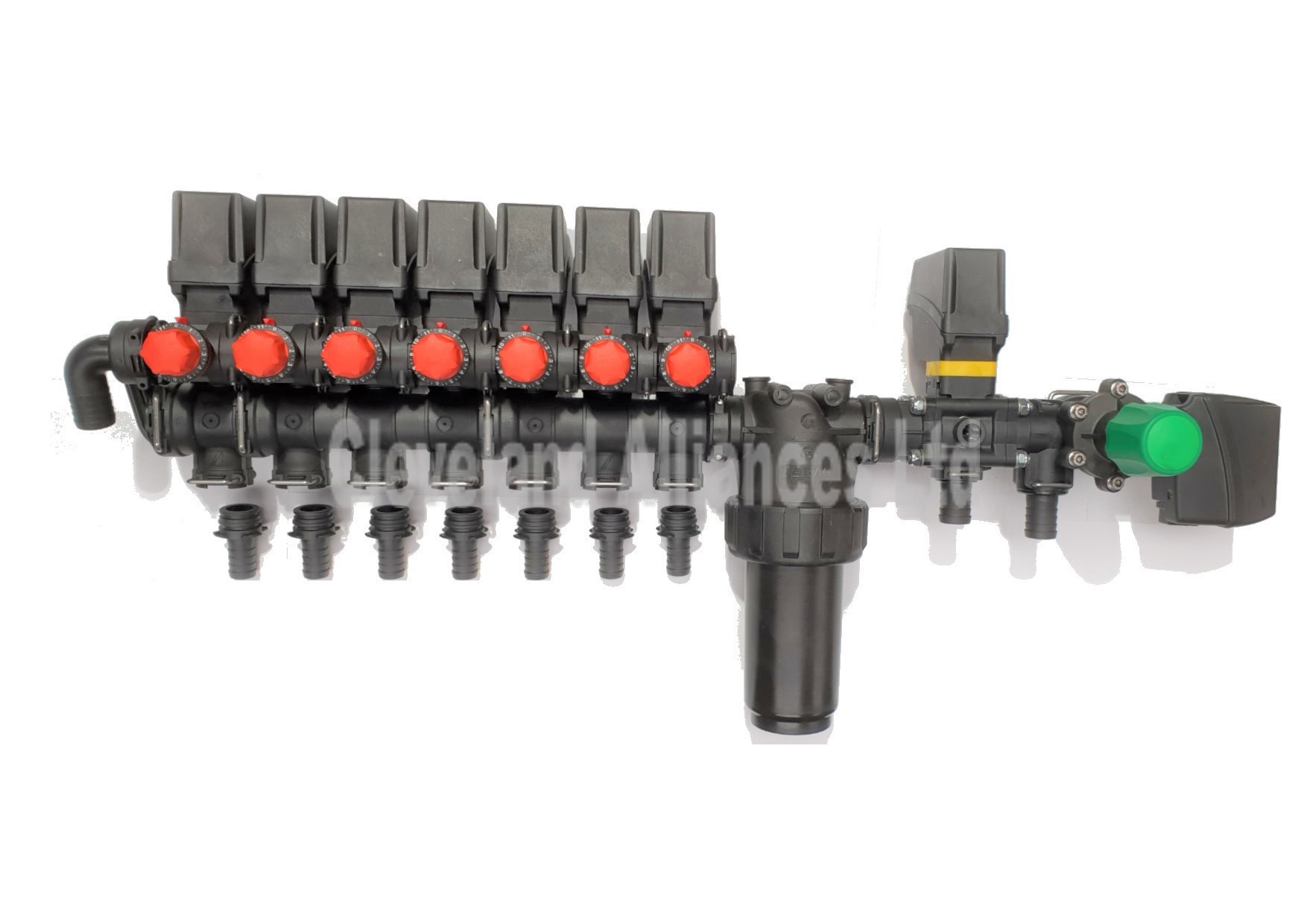

Main on / off, Pressure regulator, Filter, Section motors
20 BAR rated, 180 ltr/minute
GENERAL FEATURES
Fibreglass-reinforced Nylon body
Internal parts in Delrin® and AISI 303 stainless steel
Gaskets made of Viton®
Low power consumption
Consisting of series 871 main valve and series 863 proportional valve
TECHNICAL FEATURES
Hose fitting included:
Main feed in 25mm
ByPass 30mm
Balance tap return: 25mm
Pressure Regulator return: 25mm
Section feed hosetails available at 13mm / 16mm / 20mm
Available with
3 section
4 section
5 section
6 section
7 section
9 section
If you do not require balancing taps, they can be closed to the off position and not used
This Kit Comes Without The Wiring Harness And Without The Control Box.
