SKU: ISOCONNECT

Cleveland ISO Connect

Name: Cleveland ISO Connect
SKU: ISOCONNECT
Price: 1570.00 GBP
Availability: InStock

£1,570.00

Main Features

ISOBUS UT Function

With an app installed on your phone or tablet ISOBLOK fulfills the ISOBUS UT and TECU functionality. In case of a connected MachineryGuide guidance system the auto-section control function is also available.

Stunning Low Cost

Doesn’t want to make an investment into a terminal or finance extra features’ unlock? Invest into and maintain a reasonable low-budget solution and enjoy the functions how you can afford.

Modern Design

The app interface is simple, the graphics are modern and attractive, unique in the market. The software is available in portrait and landscape display modes and in any display size.

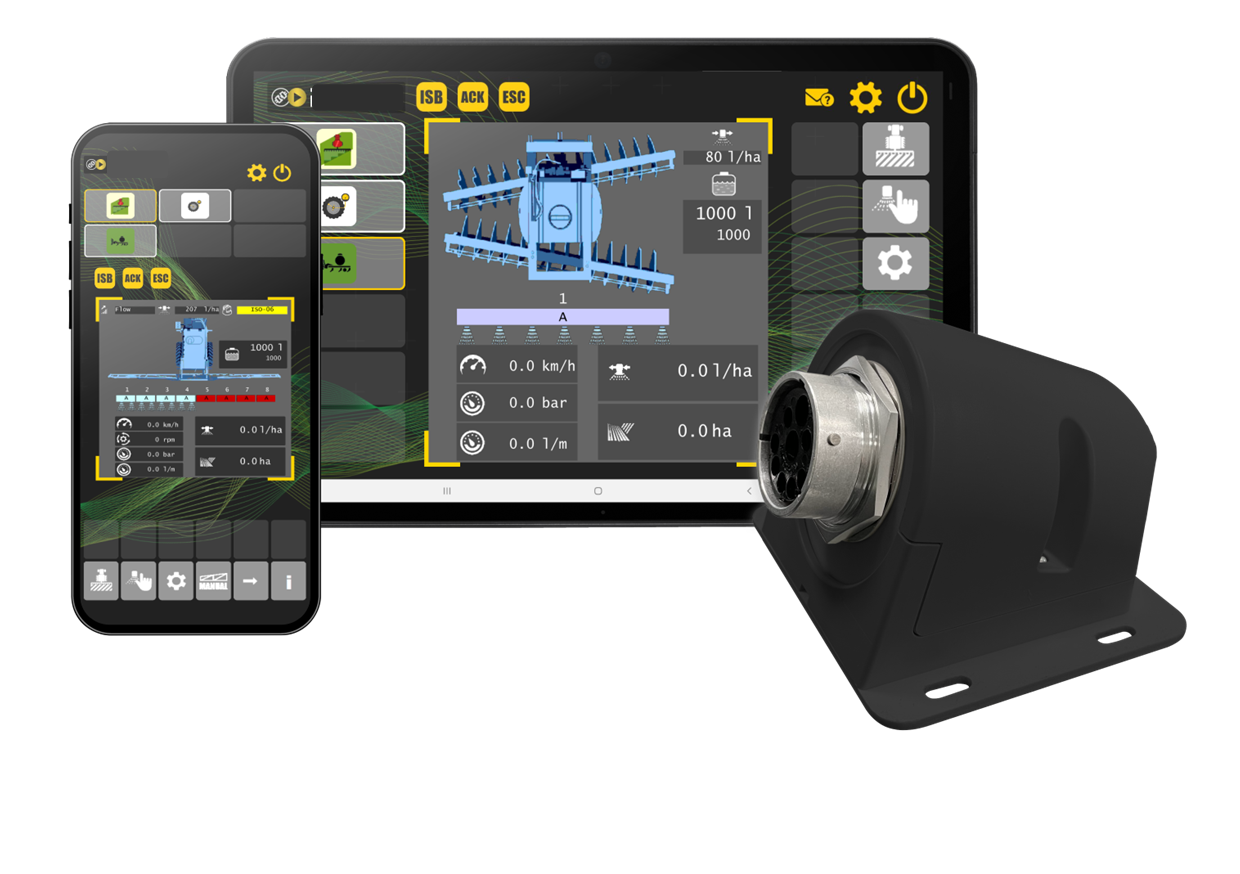

Smartphone/Tablet Support

ISOCONNECT can be used with any display running Android operating system, no individual display is needed to use the complete system.

What is in the kit?

Tractor wiring harness. (really simple - connect to the battery, run the cable to the cab, mount the ISO Connector at the back of the tractor
10 inch Lenovo Android Tablet (with window support mount)
Software to Run the System
Cleveland Support System

Technical Details

ISOCONNECT makes older tractors compatible with widely used ISOBUS implements. The system consists of a cross-platform app and the ISOCONNECT unit. The hardware requires a fixed installation on the tractor, but the display can be moved freely between tractors (in case of multi-tractor farms equipped with several ISOCONNECT). The system is a cost-effective solution for every farm even to install one system per tractor. Functions in detail: 1. The system is capable of performing the UT functions defined in the ISOBUS standard. 2. Displaying the IOP file of an ISOBUS implement connected to the tractor. 3. On the DataMask loaded from the IOP file, various machine controls and settings can be made manually. 4. The software handles multiple ISOBUS devices that can be connected to the network at the same time, so switching between WorkingSets is handled by the application. 5. USB interface between phone or tablet and the ISOCONNECT (hardware), free serial (UART) interface for system integration with other devices (e.g. third-party navigation, automatic steering system, etc.). 6. Use of built-in and external GPS speed signal for speed-dependent application rate control.

System Layout

The system has two main components: 1. ISOCONNECT App - a cross-platform software 2. ISOCONNECT hardware and its cable-harness The cable-harness fulfills all ISOBUS-hardware requirements, therefore it has an Incab interface, connection to the ignition switch and the necessary fuses and relays for the power line. Therefore the power supply to the ISOBUS is safely disconnected, when the ignition of the tractor is switched off. The connection between the display and the hardware is maintained by USB.

In short, this is a tractor ISOBUS harness, which connects to an Android tablet with a USB connector. It makes the Tablet an ISOBUS screen in your tractor! Any Tractor!
