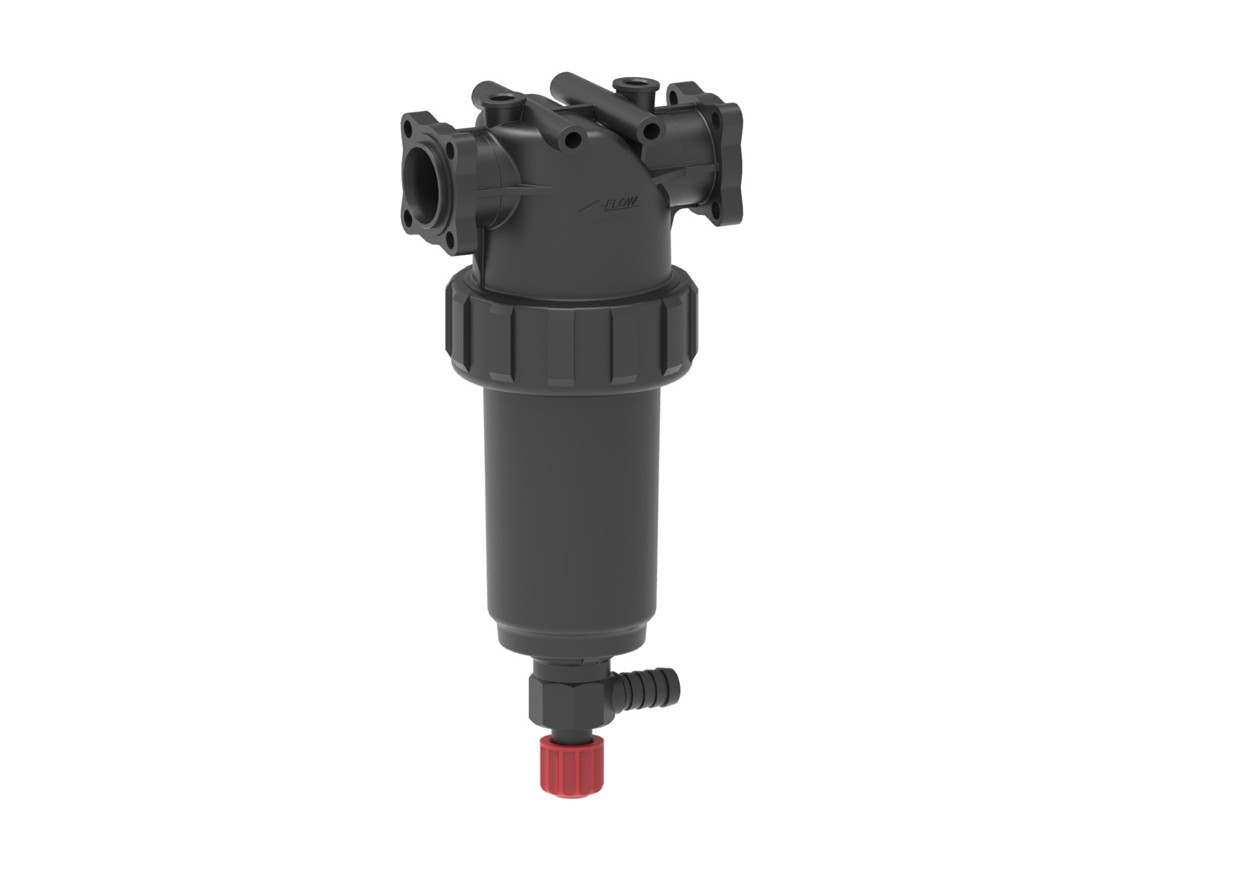

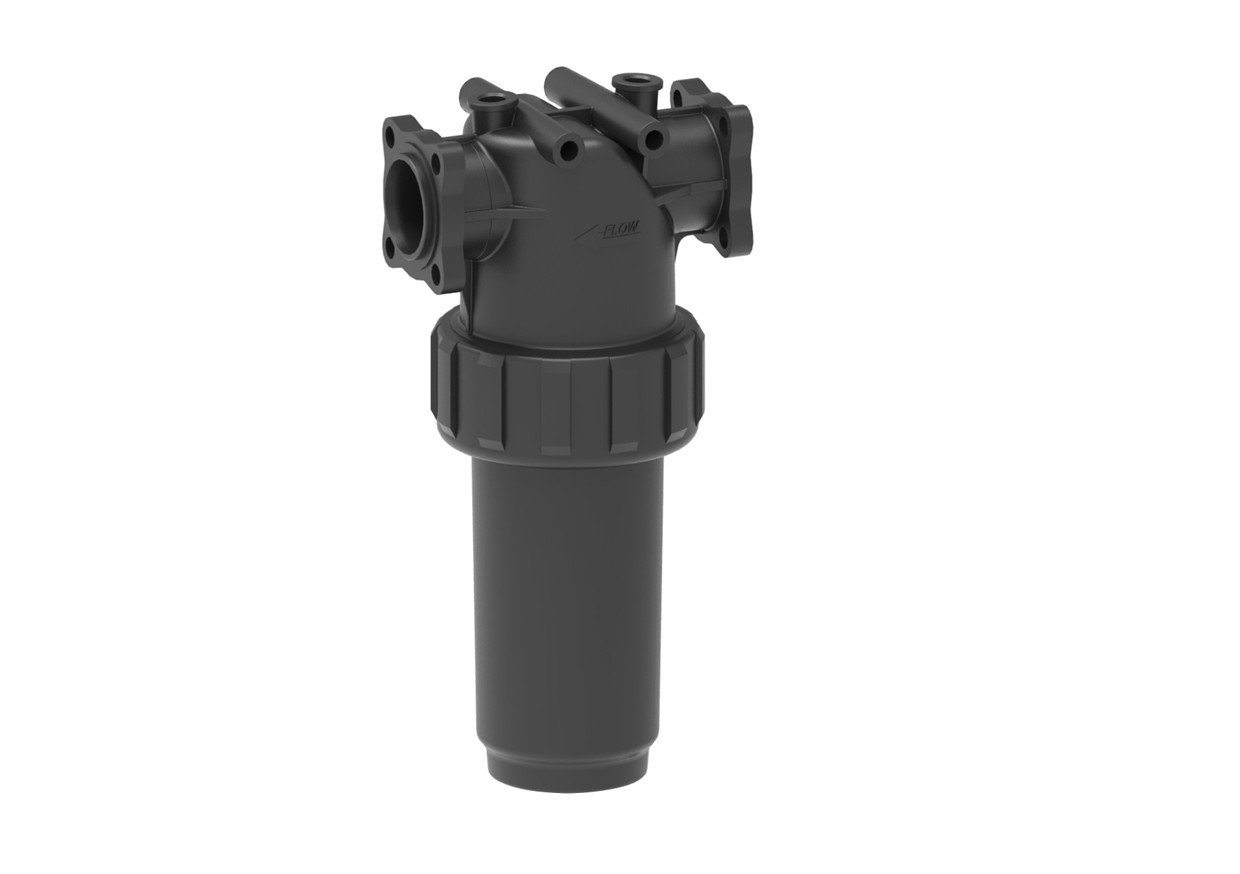

Bolted Line Control Filter for Arag Controls

GENERAL FEATURES

• Can be connected directly to the valves series 871, 863 and 864
• Cartridge : Ø 58 x 210mm
• Reinforced Polypropylene body
• EPDM gaskets (VITON® optional)
• Filtering capacity 200÷280 ltr/min

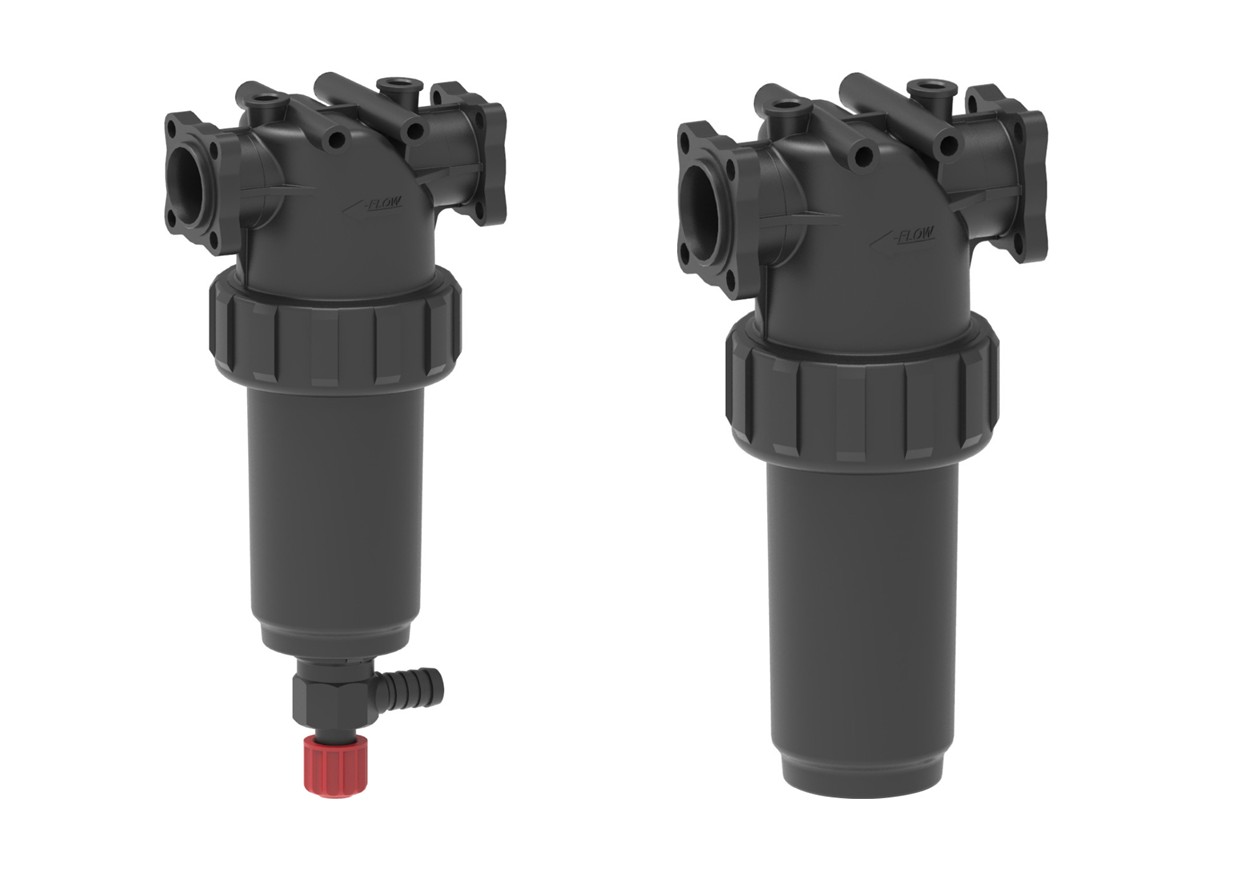

• Self-cleaning version with drain valve

Code : 3269113
Flow rate : 210 ltr/min
Flow rate : 55 US GPM
MAX Pressure : 20 bar
MAX Pressure : 290 PSI
Screen type Inox : 50 mesh
Filtering area : 106 cm2
Filtering area : 16.4 sq.inches
