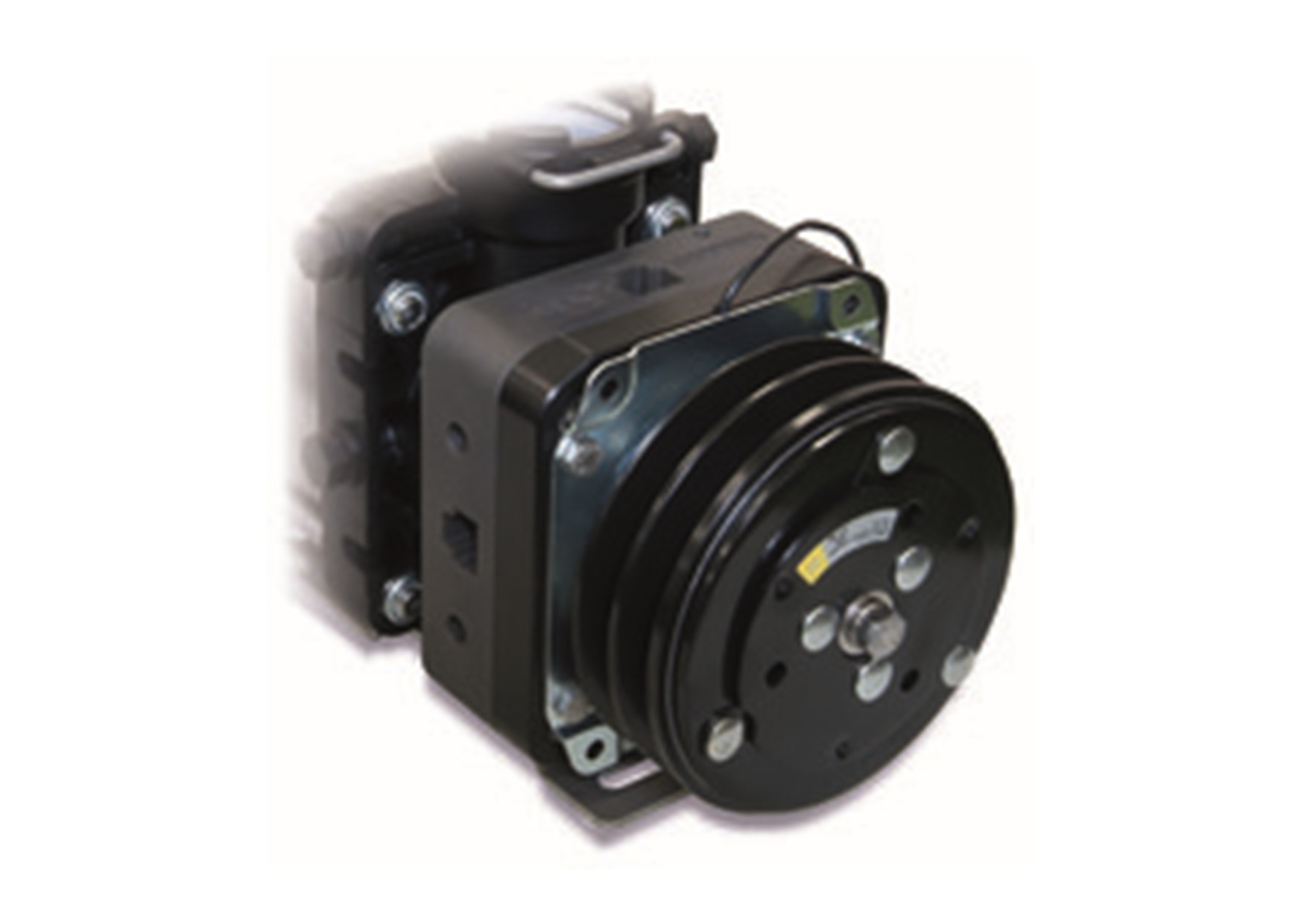

Arag MSP400 Series multistage centrifugal With electromagnetic clutch pulley
Arag MSP400 Series multistage centrifugal With electromagnetic clutch pulley - Image 2
SKU: 97055201

Arag MSP400 Series multistage centrifugal With electromagnetic clutch pulley

£1,451.88

Available on back-order

MSP pumps involve the use of multiple impellers, which allows for high operating pressures while maintaining compact pump dimensions and a low oil flow rate. The materials used ensure excellent compatibility with chemicals commonly used in agriculture and excellent corrosion resistance.
TECHNICAL FEATURES
  • Rotor system in polypropylene reinforced with fiberglass
  • High efficiency (low oil flow).
  • Reduced size.
  • Flow rate 400 l/min @ 8 bar – 103 GPM @ 120 PSI (4200 RPM).
  • Excellent chemical compatibility.
  • Direction of output adapter independent from mounting position.
Code 97055201
MAX Pressure 11 bar
Flow rate 567 l/min
MAX absorption 8.2 kW
– Connection – Fork
X 452 mm
Y 188 mm
IN T7 F
OUT T6 F
Ø ELM pulley 127 mm
Absorption @ 12 V 4 A
Power supply voltage 12 Vdc
Impellers 5
