Arag MSP400 Series multistage centrifugal With direct attachment to the sprocket
Arag MSP400 Series multistage centrifugal With direct attachment to the sprocket - Image 2
SKU: 97045201

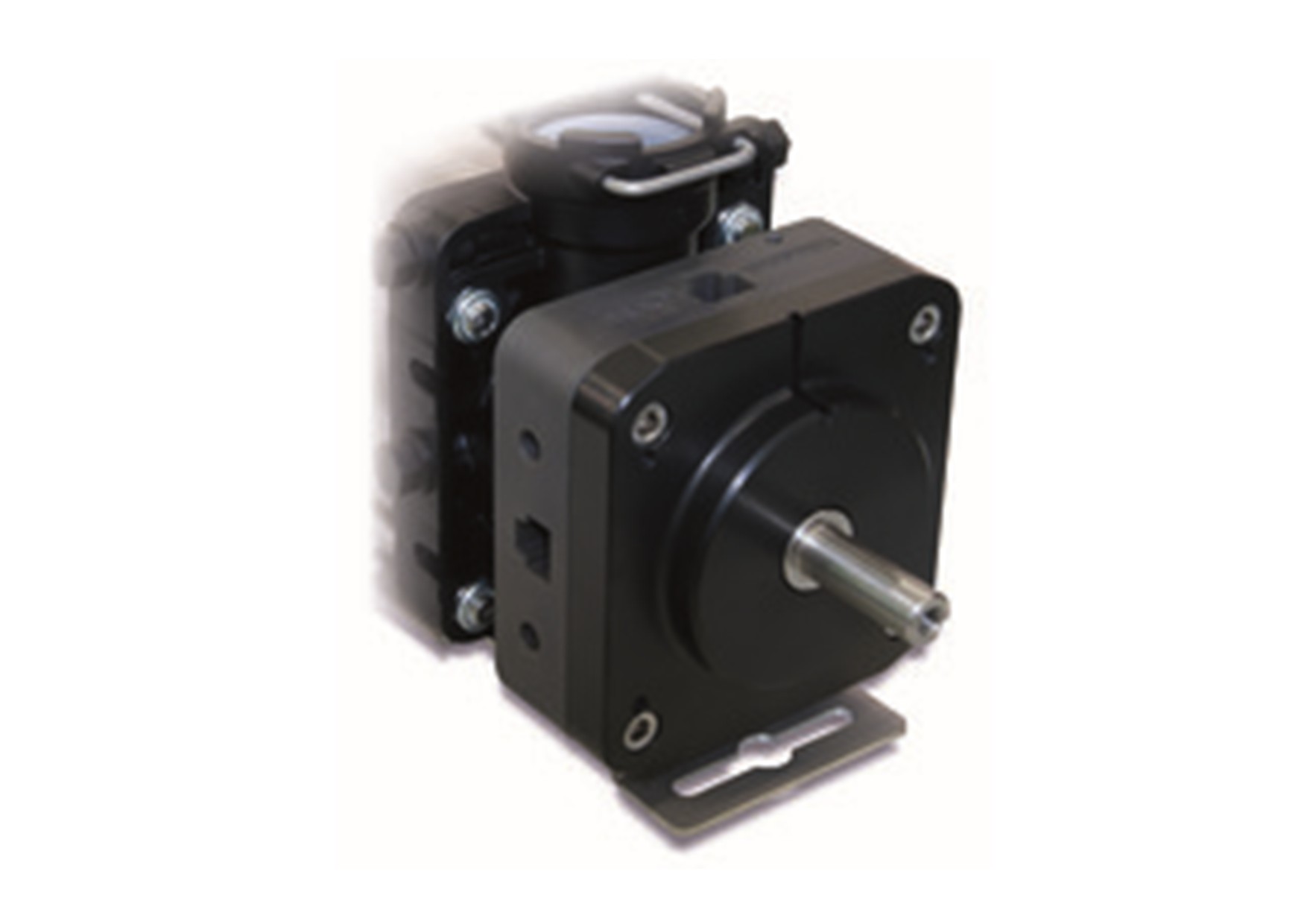

Arag MSP400 Series multistage centrifugal With direct attachment to the sprocket

£1,107.73

Available on back-order

MSP pumps involve the use of multiple impellers, which allows for high operating pressures while maintaining compact pump dimensions and a low oil flow rate. The materials used ensure excellent compatibility with chemicals commonly used in agriculture and excellent corrosion resistance.



TECHNICAL FEATURES
  • Rotor system in polypropylene reinforced with fiberglass
  • High efficiency (low oil flow).
  • Reduced size.
  • Flow rate 400 l/min @ 8 bar – 103 GPM @ 120 PSI (4200 RPM).
  • Excellent chemical compatibility.
  • Direction of output adapter independent from mounting position.



Code 97045201
MAX Pressure 11.0 bar
Flow rate 567 l/min
MAX absorption 8.2 kW
– Connection – Fork
X 440 mm
Y 188 mm
IN T7 F
OUT T6 F
Impellers 5
