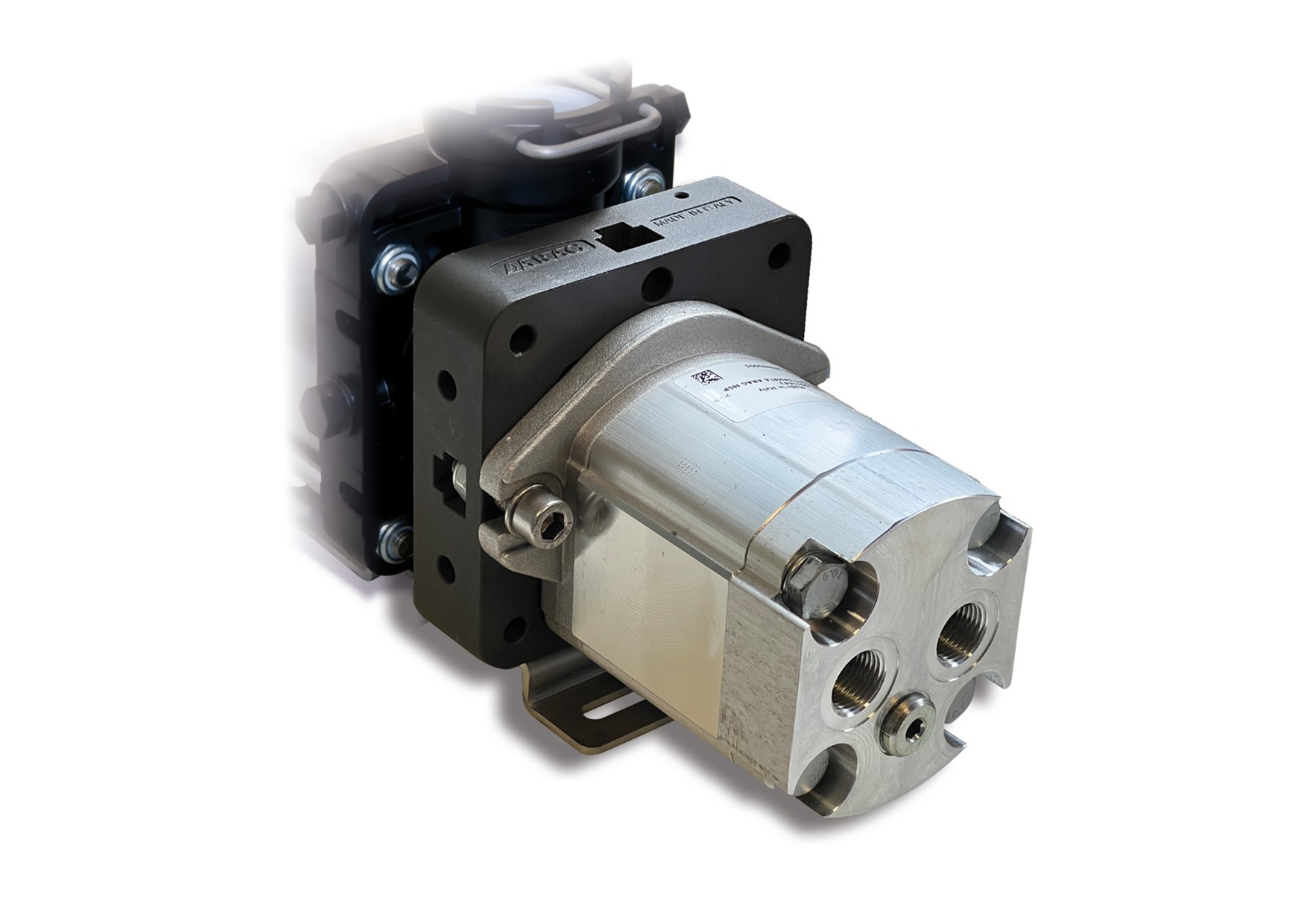

Arag MSP400 Series Multistage Centrifugal With Hydraulic Motor
Arag MSP400 Series Multistage Centrifugal With Hydraulic Motor - Image 2
SKU: Arag MP400 Series Mutlistage Centrifugal With Hydraulic Motor

Arag MSP400 Series Multistage Centrifugal With Hydraulic Motor

£1,338.06

MSP pumps involve the use of multiple impellers, which allows for high operating pressures while maintaining compact pump dimensions and a low oil flow rate. The materials used ensure excellent compatibility with chemicals commonly used in agriculture and excellent corrosion resistance.

​​This type of hydraulic motor was designed to be installed on self-propelled spraying machines where:
– there is a specific hydraulic pump for pump motor supply
– a direct connection to oil tank drain can be made
– piping connections are fixed.

TECHNICAL FEATURES
  • Rotor system in polypropylene reinforced with fiberglass
  • High efficiency (low oil flow).
  • Reduced size.
  • Flow rate 400 l/min @ 8 bar – 103 GPM @ 120 PSI (4200 RPM).
  • Excellent chemical compatibility.
  • Direction of output adapter independent from mounting position.



All fork connections are T7 F.

All clamp connections are 2″ Full Port
