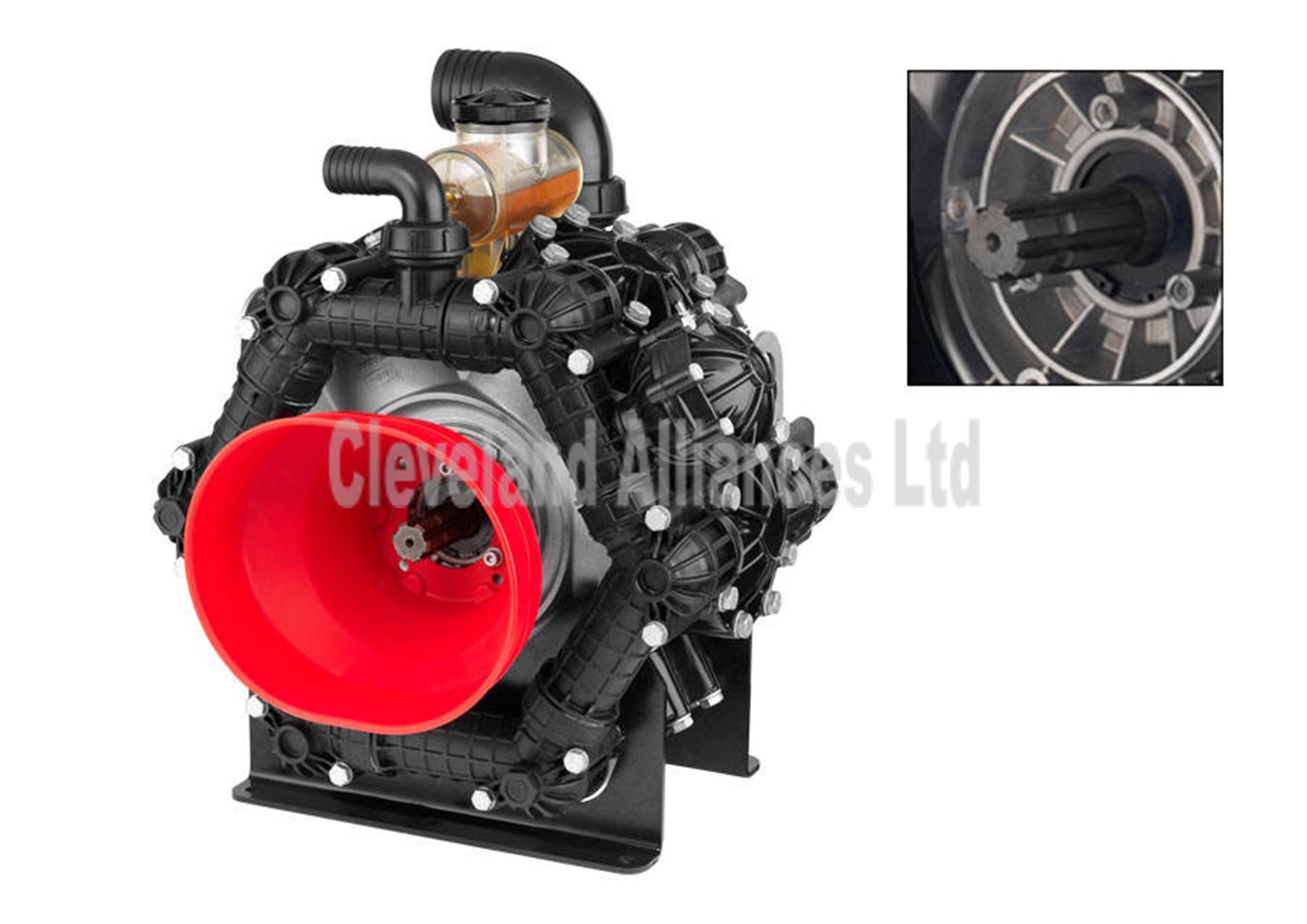

Annovi Reverberi AR410 BP

Product details

Semi-hydraulic six-diaphragm pump, for use in low pressure systems. Parts in contact with pumped liquids in plastic-coated aluminium Rilsan and AISI 303/304. Diaphragms in BlueFlex™. Seals in NBR. Fitted with air-hydraulic damper for smoother operation and less hammer effect in the delivery circuit. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking. Remote level monitoring sensor on request. Remote oil tank installation kit available on request. Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm. New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions. Spherical sector profile valves for lower flow resistance and improved volumetric efficiency. Rugged feet secured to pump casing. Geomet stainless steel finish metal fasteners. Stopper for drainage of liquid from the circuit before storage over winter. Complete with drive shaft guard. Available flanges for hydraulic motors and hydraulic pumps for overgears. Kit for combining two pumps to form a modular unit to supply the sprayer’s various uses.

AR Code	32053
Version	C/C
Diaphragms	6
Max flow (lpm)	401.2
Max flow (gpm)	106
Max Pressure (bar)	20
Max Pressure (psi)	290
Power (Hp)	19.4
RPM	550
Net weight (Kg)	785
Size (mm) - L	566
Size (mm) - H	619
Size (mm) - W	500
Suction (mm)	ø 75
Outlet (mm)	ø 40
Max temperature (°C)	60
