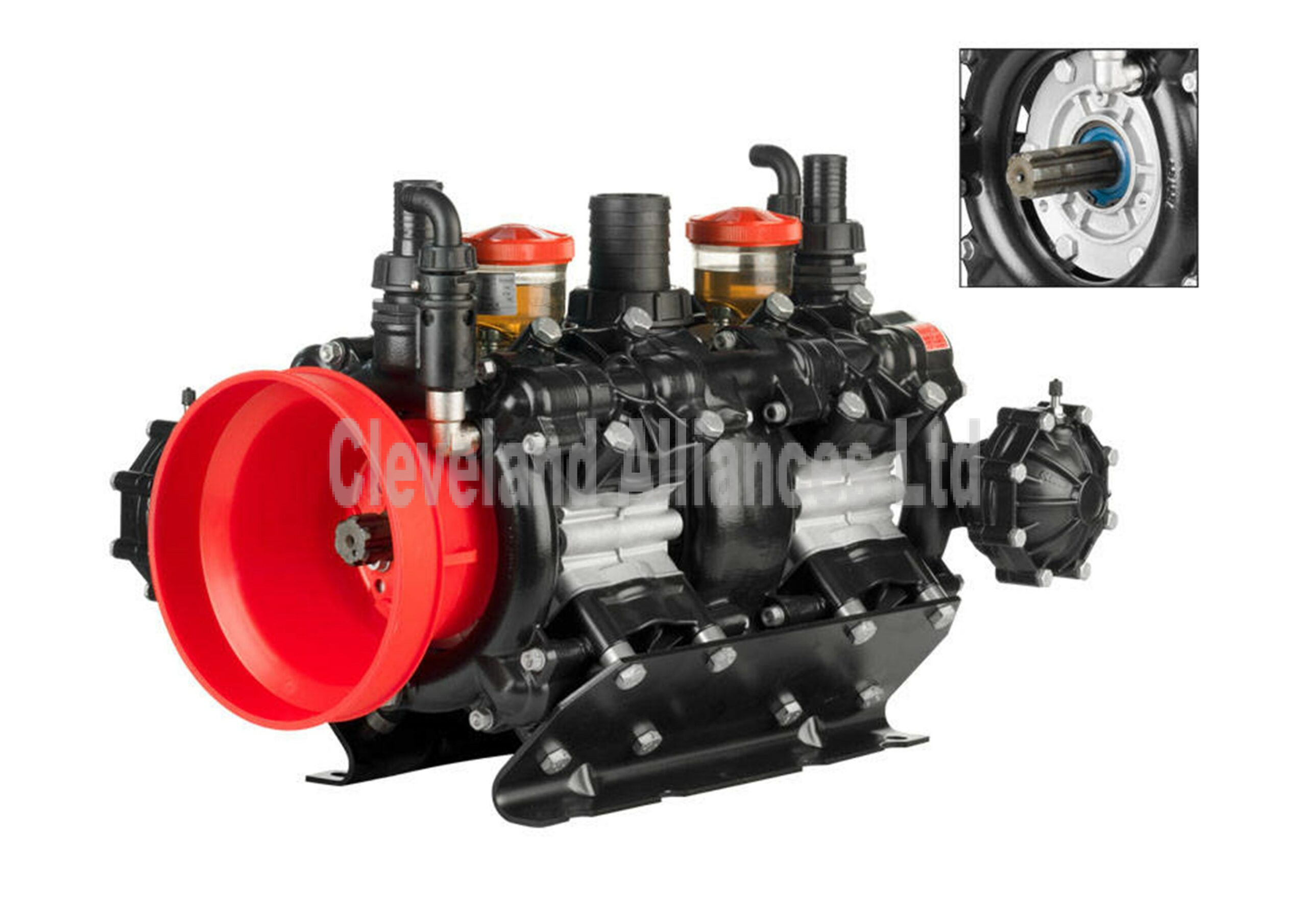

Annovi Reverberi Twin AR370 BP


Annovi Reverberi Twin AR370 BP

List Price Original price was: £2,504.51.Current price is: £2,020.06.

SKU: AR32069 Category:


Product details

Semi-hydraulic four plus four diaphragm pump, for use in low pressure systems. Parts in contact with pumped liquids in plastic-coated aluminium Rilsan and AISI 303/304. Diaphragms in BlueFlex™. Seals in NBR. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking. Fitted with air-hydraulic dampers for smoother operation and less hammer effect in the delivery circuit. Remote level monitoring sensor on request. Remote oil tank installation kit available on request. Oil drainage stopper. Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm. Spherical sector profile valves for lower flow resistance and improved volumetric efficiency. Rugged feet secured to pump casing. Mass-produced safety valve and cardan protection. Geomet metal fasteners. Available flanges for hydraulic motors and hydraulic pumps for overgears.

Technical specifications

AR Code 32069
Version C/C
Diaphragms 8
Max flow (lpm) 371.5
Max flow (gpm) 98.2
Max Pressure (bar) 20
Max Pressure (psi) 290
Power (Hp) 17.3
RPM 550
Net weight (Kg) 63
Size (mm) – L 460
Size (mm) – H 435
Size (mm) – W 635
Suction (mm) ø 250
Outlet (mm) 2 x ø 35
Max temperature (°C) 60

Additional information

Weight 58 kg
