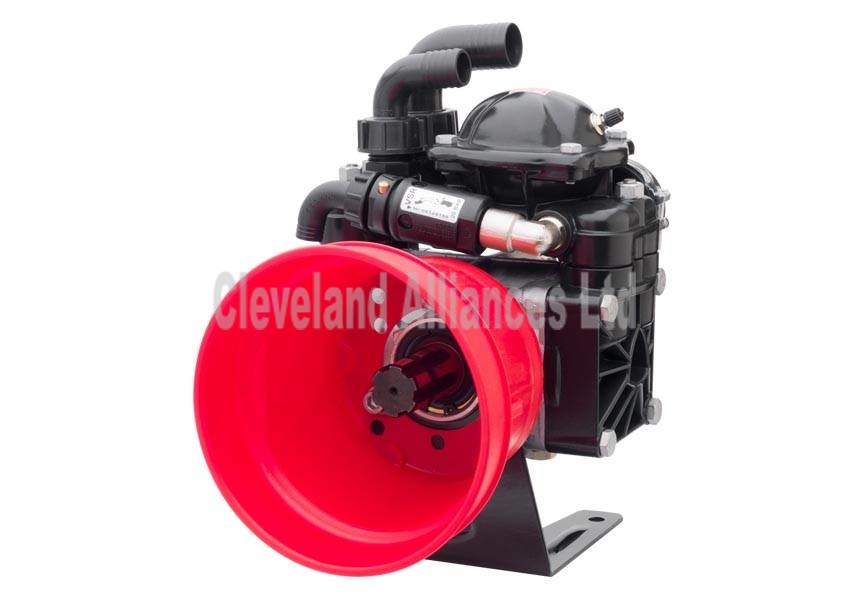

AR 70 BP 2 cylinder PTO driven 540 rpm pump. (Blueflex)
AR Code
32004
Version C
Diaphragms 2
Max flow (lpm) 74.1
Max flow (gpm) 19.6
Max Pressure (bar) 20
Max Pressure (psi) 290
Power (Hp) 3.4
RPM 550
Weight (Kg) 11.8
Size (mm) - L 232
Size (mm) - H 335
Size (mm) - W 245
Suction (mm) ø 30
Outlet (mm) ø 25
Max temperature (°C)60
