Annovi Reverberi AR 380 BP

Sale!

Annovi Reverberi AR 380 BP

List Price £2,030.34

Available on backorder

SKU: AR32052 Category:

Description

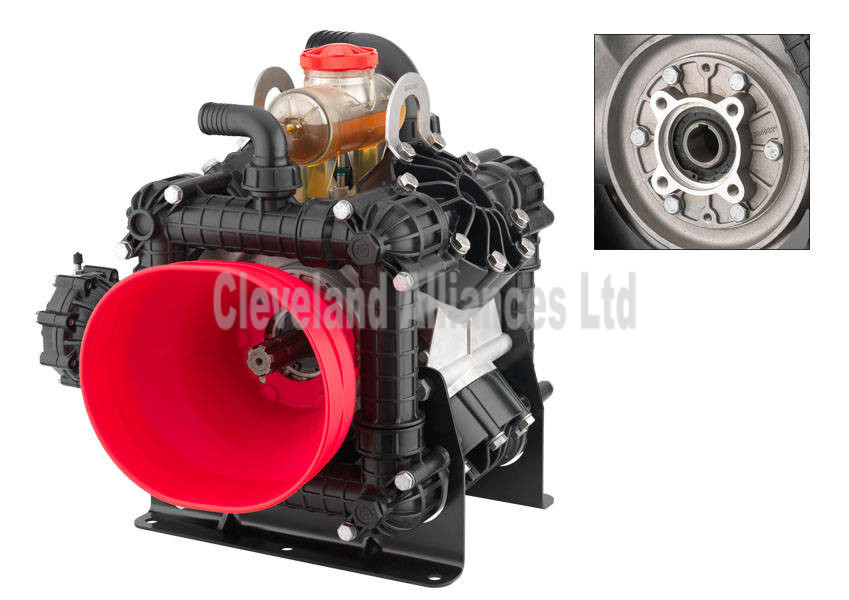

AR 380 BP 4 cylinder PTO driven 540 rpm pump. (Blueflex) (with female connection on one side for hydraulic drive attachment)

AR Code 1273
Version C/F ø 32
Diaphragms 4
Max flow (lpm) 367.7
Max flow (gpm) 97.1
Max Pressure (bar) 20
Max Pressure (psi) 290
Power (Hp) 17.4
RPM 550
Weight (Kg) 60
Size (mm) – L 510
Size (mm) – H 541
Size (mm) – W 570
Suction (mm) ø 60
Outlet (mm) ø 35
Max temperature (°C) 60

Semi-hydraulic four-diaphragm pump, for use in low pressure systems. Parts in contact with pumped liquids in plastic-coated aluminium Rilsan and AISI 303/304. Diaphragms in NBR. Seals in NBR. Fitted with air-hydraulic damper for smoother operation and less hammer effect in the delivery circuit. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking. Remote level monitoring sensor on request. Remote oil tank installation kit available on request. Oil drainage stopper. Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm. New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions. Spherical sector profile valves for lower flow resistance and improved volumetric efficiency. Rugged feet secured to pump casing. Geomet stainless steel finish metal fasteners. Stopper for drainage of liquid from the circuit before storage over winter. Complete with drive shaft guard. Available pulley fixtures, flanges for hydraulic motors and hydraulic pumps for overgears. Kit for combining two pumps to form a modular unit to supply the sprayer’s various uses.

Additional information

Weight 55 kg
