Product details :

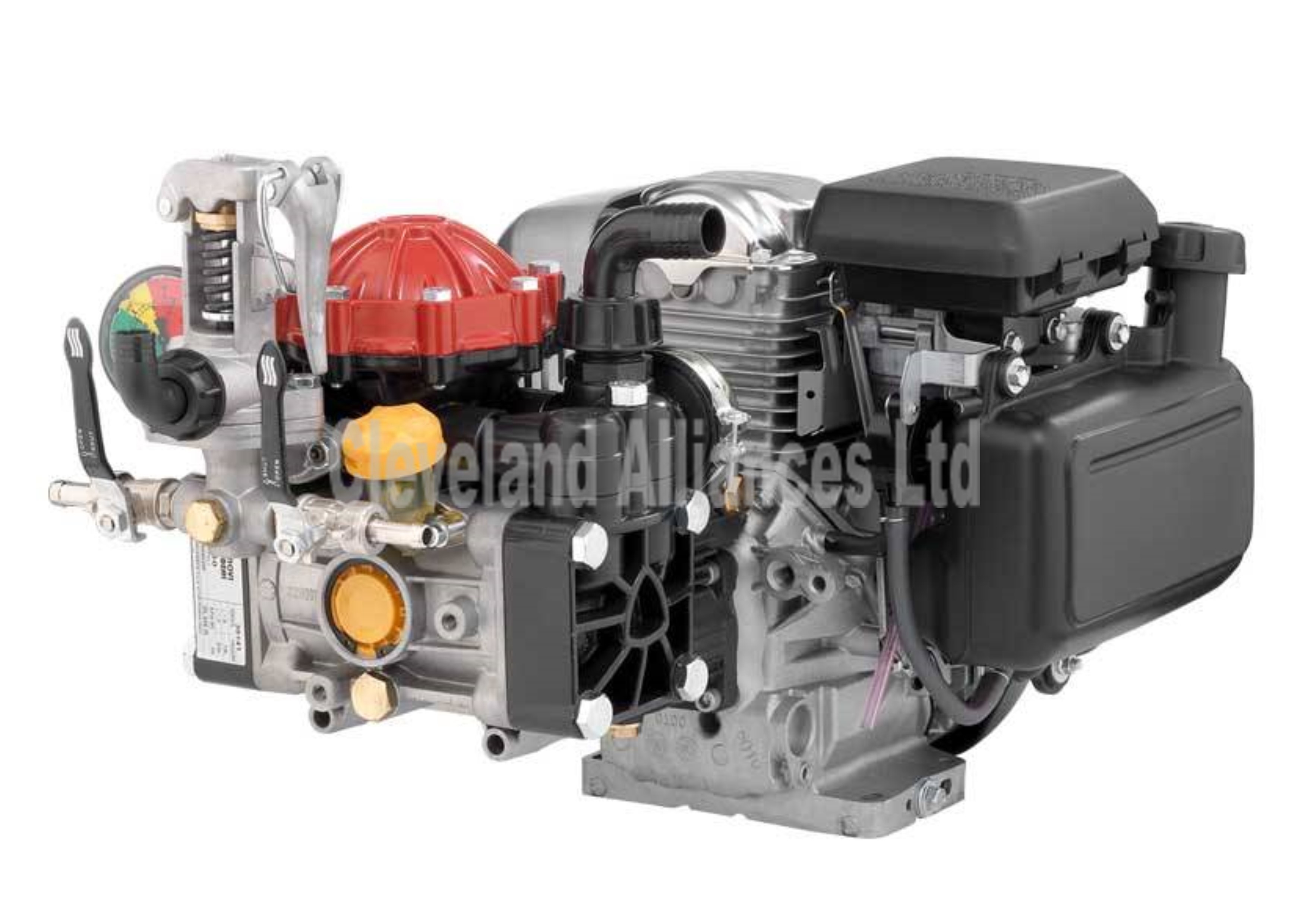

Semi-hydraulic two-diaphragm pump, for use in the semi-professional agricultural sectors. Trolley-mounted in combination with internal combustion engines for gardening, and small sprayers for medium-pressure pesticide treatments in gardens, greenhouses, orchards or vineyards. Parts in contact with pumped liquids in Rilsan-coated aluminium, and AISI 303/304. Diaphragms in BlueFlex™. Seals in NBR. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking. Fitted with air-hydraulic damper for smoother operation and less hammer effect in the delivery circuit. Oil drainage stopper. Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm. New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions. Spherical sector profile valves for lower flow resistance Reduction gearboxes for internal combustion engines.
AR Code 32220
Version S
Diaphragms 2
Max flow (lpm) 36.2
Max flow (gpm) 9.6
Max Pressure (bar) 40
Max Pressure (psi) 580
Power (Hp) 4.8
RPM 550
Size (mm) - L 680
Size (mm) - H 390
Size (mm) - W 410
Suction (mm) ø 30
Outlet (mm) 2 x ø 10
Max temperature (°C) 60
